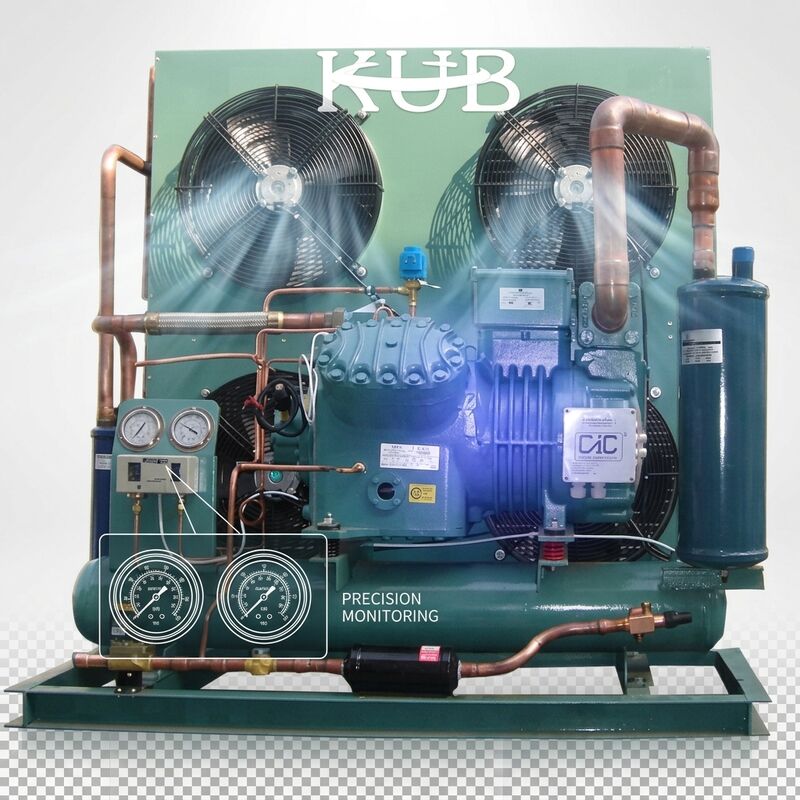

Quiet Low Noise Semi Hermetic Condensing Unit 4VES-10Y Sound Proof Cold Room Refrigeration 380V

Quiet Low Noise Semi Hermetic Condensing Unit 4VES-10Y Sound Proof Cold Room Refrigeration 380V

Silent Condensing Unit

Low Noise Semi Hermetic

Quiet Refrigeration Compressor Unit

Επικοινωνήστε μαζί μας
Ζητήστε μια προσφορά
Quiet Low Noise Semi Hermetic Condensing Unit 4VES-10Y Sound Proof Cold Room Refrigeration 380V
Λεπτομέρειες για το προϊόν
Επισημαίνω:

Silent Condensing Unit

,

Low Noise Semi Hermetic

,

Quiet Refrigeration Compressor Unit

Όροι πληρωμής και αποστολής
Συγγενικά προϊόντα
Καλή τιμή Parallel Rack Compressor Semi Hermetic Condensing Unit 4NES-20Y Industrial Cold Storage System σε απευθείας σύνδεση

Parallel Rack Compressor Semi Hermetic Condensing Unit 4NES-20Y Industrial Cold Storage System

Πάρτε την καλύτερη τιμή
Καλή τιμή Quiet Low Noise Semi Hermetic Condensing Unit 4VES-10Y Sound Proof Cold Room Refrigeration 380V σε απευθείας σύνδεση

Quiet Low Noise Semi Hermetic Condensing Unit 4VES-10Y Sound Proof Cold Room Refrigeration 380V

Πάρτε την καλύτερη τιμή
Καλή τιμή Water Cooled Semi Hermetic Condensing Unit 4FES-5Y Shell Tube Condenser Industrial Refrigeration σε απευθείας σύνδεση

Water Cooled Semi Hermetic Condensing Unit 4FES-5Y Shell Tube Condenser Industrial Refrigeration

Πάρτε την καλύτερη τιμή
Καλή τιμή Dual Stage Ultra Low Temperature Semi Hermetic Condensing Unit 2CES-4Y Deep Freeze -40C Cooling σε απευθείας σύνδεση

Dual Stage Ultra Low Temperature Semi Hermetic Condensing Unit 2CES-4Y Deep Freeze -40C Cooling

Πάρτε την καλύτερη τιμή
Επικοινωνήστε μαζί μας
Επικοινωνήστε Τώρα
Περιγραφή προϊόντος

Quiet Low Noise Semi Hermetic Condensing Unit 4VES-10Y-SL

Ultra-quiet operation at ≤62 dB(A)—specially engineered for noise-sensitive installations in urban areas, supermarkets, hospitals, and residential-adjacent cold rooms.

10HP
Horsepower
4
Cylinders
-20°C to +5°C
Temp Range
18600W @ -15°C
Cooling Capacity
R22/R404a/R507
Refrigerant
380V/3PH/50Hz
Power Supply

Product Introduction

The 4VES-10Y-SL is a premium Semi Hermetic Condensing Unit engineered by KUB Refrigeration Equipment Co., Ltd, designed to deliver exceptional cooling performance for commercial and industrial cold storage applications. This unit integrates a high-efficiency semi hermetic reciprocating compressor with a perfectly matched air-cooled condenser, providing a compact yet powerful refrigeration solution.

Manufactured in Shanghai, China, with over 20 years of refrigeration engineering expertise, the 4VES-10Y-SL combines advanced compressor technology with robust construction to ensure long-term reliable operation. Every unit undergoes rigorous factory testing including pressure tests, electrical safety checks, and performance validation before shipment.

Features & Characteristics

  • High-Efficiency Semi Hermetic Compressor: Serviceable reciprocating design with precision-machined components for extended service life and easy field maintenance.
  • Optimized Condenser Design: High-efficiency finned tube condenser with large-diameter axial fans delivers superior heat rejection and stable condensing pressure.
  • Multi-Layer Safety Protection: Integrated controller with phase loss/sequence protection, high/low pressure cutouts, oil pressure safety switch, and motor overload protection.
  • Wide Refrigerant Compatibility: Engineered to operate with multiple refrigerants, providing flexibility for different regional requirements and application needs.
  • Low Vibration Operation: Optimized mass balance design with vibration isolation mounts ensures quiet, stable operation suitable for various installation environments.
  • Factory Pre-Charged & Tested: Pre-wired control panel, pre-piped connections, and comprehensive factory testing minimize on-site installation time.
  • Weather-Resistant Construction: Durable powder-coated steel frame and weather-protected electrical enclosure suitable for indoor and sheltered outdoor installation.
  • Energy-Efficient Motor: High-efficiency motor with broadband characteristics delivers optimal performance at both full-load and part-load conditions.

Why Choose KUB?

  • 20+ Years of Expertise: KUB has specialized in refrigeration equipment manufacturing since 2000, serving customers in over 30 countries worldwide.
  • Rigorous Quality Control: Every unit undergoes comprehensive factory testing including pressure tests, electrical safety verification, and full-load performance runs.
  • Global Certifications: Our products meet CE standards and comply with international refrigeration safety and performance requirements.
  • One-Year Comprehensive Warranty: Full coverage on manufacturing defects with responsive after-sales support and readily available spare parts.
  • Customization Capability: Our engineering team can customize units to meet specific voltage, refrigerant, and application requirements.
  • Competitive Value: Factory-direct pricing with premium component quality delivers exceptional return on investment for cold storage operators.
  • Fast Global Shipping: Efficient logistics network ensures timely delivery to ports worldwide with professional export packaging.

Technical Specifications

ParameterSpecification
Model4VES-10Y-SL
Compressor TypeSemi Hermetic Reciprocating
Horsepower10HP
Cylinders4
Displacement34.7 m³/h
Noise Level≤62 dB(A) @ 1m
Power Supply380V/3PH/50Hz
Evaporating Temp Range-20°C to +5°C
Cooling Capacity @ -15°C18600W
Cooling Capacity @ -5°C24180W
RefrigerantR22 / R404a / R507
Condenser TypeAir Cooled Finned (Low-Noise)
Number of Fans2 * 450mm Low-RPM Axial
Suction Line28mm (1-1/8")
Liquid Line16mm (5/8")
Sound FeaturesVibration Isolation + Compressor Acoustic Jacket
OptionalFull Acoustic Enclosure Available
Net Weight240kg
Dimensions (L*W*H)1350 * 800 * 950mm
Oil TypeB5.2 Refrigeration Oil
CertificationCE
Warranty1 Year

Applications

Ideal for supermarket and convenience store cold rooms, hotel and restaurant walk-in coolers, hospital and laboratory cold storage, residential-area commercial refrigeration, office building server room cooling, and any installation governed by strict noise regulations.

Frequently Asked Questions

Q: How is the low noise level achieved?
A: Through a combination of optimized compressor mass balance, special cylinder head design for reduced gas pulsation, precision-balanced crankshaft, vibration isolation mounts, acoustic insulation jacket, and low-RPM large-diameter condenser fans.
Q: What does 62 dB(A) sound like in real terms?
A: 62 dB(A) is comparable to normal conversation level or background office noise. It is significantly quieter than standard condensing units which typically operate at 70-78 dB(A).
Q: Can an acoustic enclosure reduce noise further?
A: Yes, our optional acoustic enclosure can reduce noise by an additional 8-12 dB(A), bringing the unit below 55 dB(A). Contact us for enclosure specifications and pricing.
Q: Does the noise reduction affect cooling performance?
A: No, the noise reduction features are designed to maintain full cooling capacity. The low-RPM fans are larger diameter to deliver the same airflow at lower speed and noise.
Q: Is this unit suitable for night-time operation in residential areas?
A: Yes, at ≤62 dB(A) the unit meets most municipal noise ordinances for commercial equipment in residential-adjacent zones. The optional acoustic enclosure provides additional assurance for the strictest noise regulations.

Packaging & Shipping

  • Packaging: Export-standard plywood case/pallet with moisture-proof wrapping and reinforced corner protection.
  • Shipping Port: Shanghai/Ningbo, China
  • Delivery Time: 15-25 working days after order confirmation, depending on configuration and quantity.
