Carrier 10HP-40HP Air Cooled Condensing Unit with Carlyle Semi-Hermetic Compressor
Με ελάτε σε επαφή με δωρεάν δείγματα και δελτία.
whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.
xΛεπτομέρειες
| Δυναμικό | 400V | Βάρος | 1000 kg |
|---|---|---|---|
| Τύπος συμπιεστή | ημι-στερητικοί, ημι-σπερματιστές παλινδρομικοί συμπιεστές | Τύπος συμπυκνωτή | Συμπυκνωτής αεροψυχραντήρων |
| Ψυκτικός | R22/R404A, R404A/R507A/R22 | κλίμακα θερμοκρασίας | +10 έως -18 |
| Χωρητικότητα ψύξης | Μεσαία έως υψηλή θερμοκρασία | μάρκα συμπιεστή | Καρλάιλ. |
| Φάσμα ηλεκτρικής ενέργειας | 10hp έως 40hp | Φάση τάσης | 400V/3P-50Hz |
| Διαχωριστής ελαίου | 1 | Στεγνωτήρας φίλτρων | 1 (kub) |
| Ηλεκτρομαγνητική βαλβίδα | 1 | Έλεγχος πίεσης | 1 |
| μέτρο υψηλής πίεσης | 1 | ||
| Επισημαίνω | Carrier air cooled condensing unit,10HP-40HP refrigeration condensing unit,Carlyle semi-hermetic compressor unit |
||
Περιγραφή προϊόντων
Carrier 10HP-40HP Indoor Air Cooled Condensing Unit with Carlyle Semi-Hermetic Compressor
Key Features
- Carlyle semi-hermetic reciprocating compressor
- Air cooled condenser with fan
- Medium to high temperature cooling capacity
- Multiple refrigerant options: R22/R404A, R404A/R507A/R22
- Operating temperature range: +10°C to -18°C
- 1-year warranty with online after-sales support
- Competitive pricing with MOQ of 1 piece
Technical Specifications
| Attribute | Value |
|---|---|
| Voltage | 400V/3P-50HZ |
| Compressor Brand | Carlyle |
| Compressor Type | Semi-hermetic Reciprocating Compressors |
| Refrigerant | R22/R404A, R404A/R507A/R22 |
| Operating Temperature | +10°C to -18°C |
| Weight | 1000 KG |
| Packing | Wooden Case |
| Warranty | 1 Year |
Standard Configuration
| Component | Quantity |
|---|---|
| Compressor | 1 |
| Oil separator | 1 |
| Air cooler condenser with fan | 1 |
| Shock absorber tube | 1 |
| Refrigerant receiver | 1 |
| Filter drier (KUB) | 1 |
| Solenoid valve | 1 |
| Pressure control | 1 |
| High pressure gauge | 1 |
| Low pressure gauge | 1 |
| Junction box | 1 |

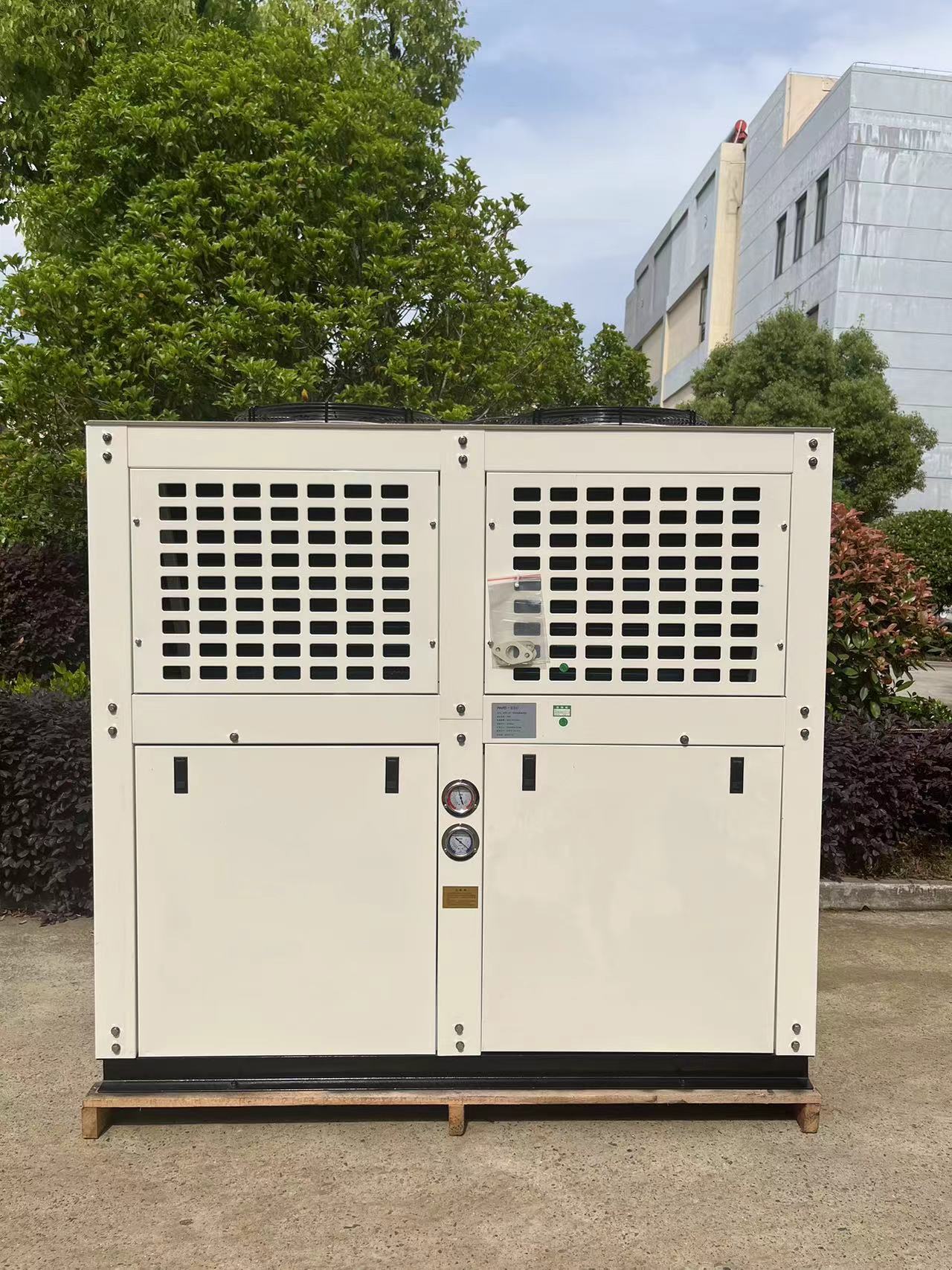

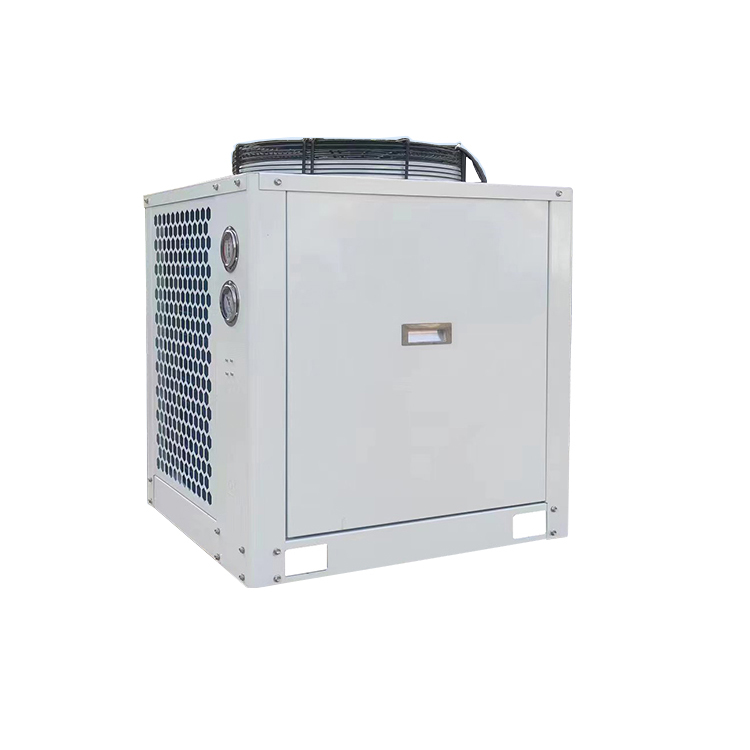

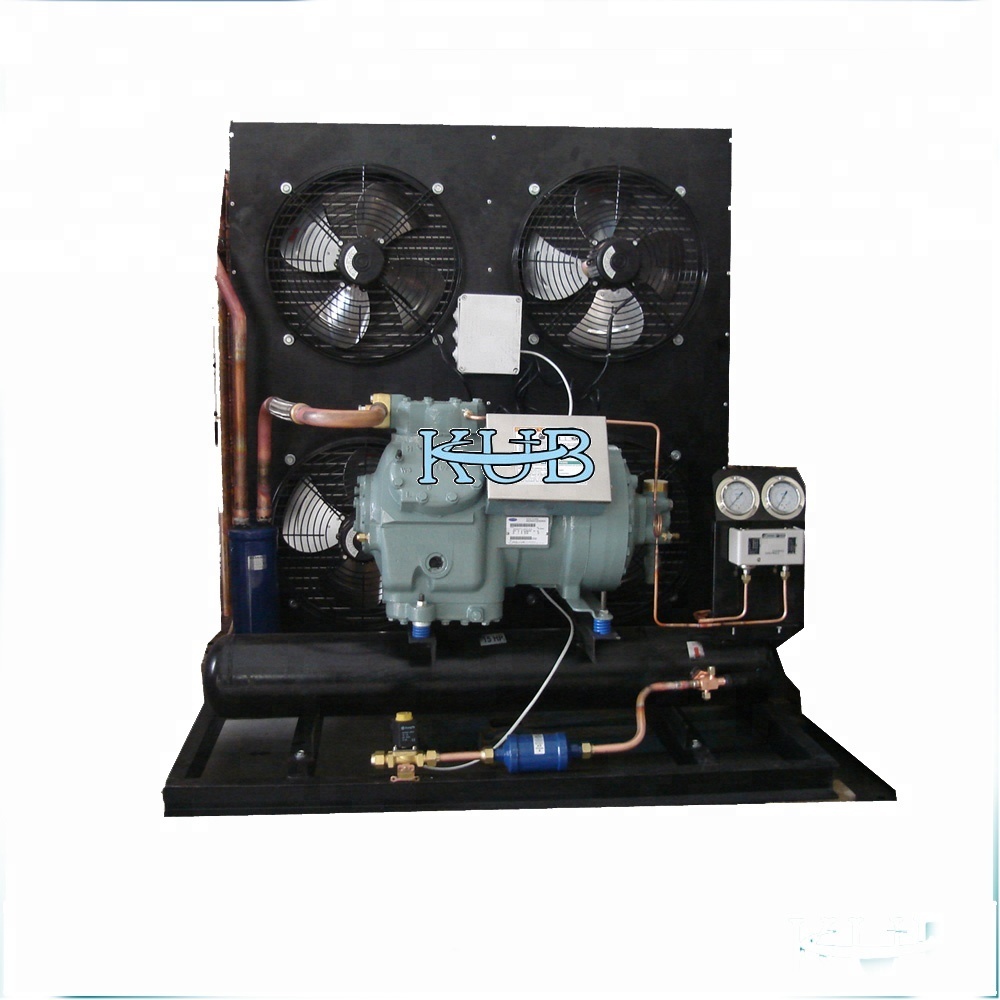

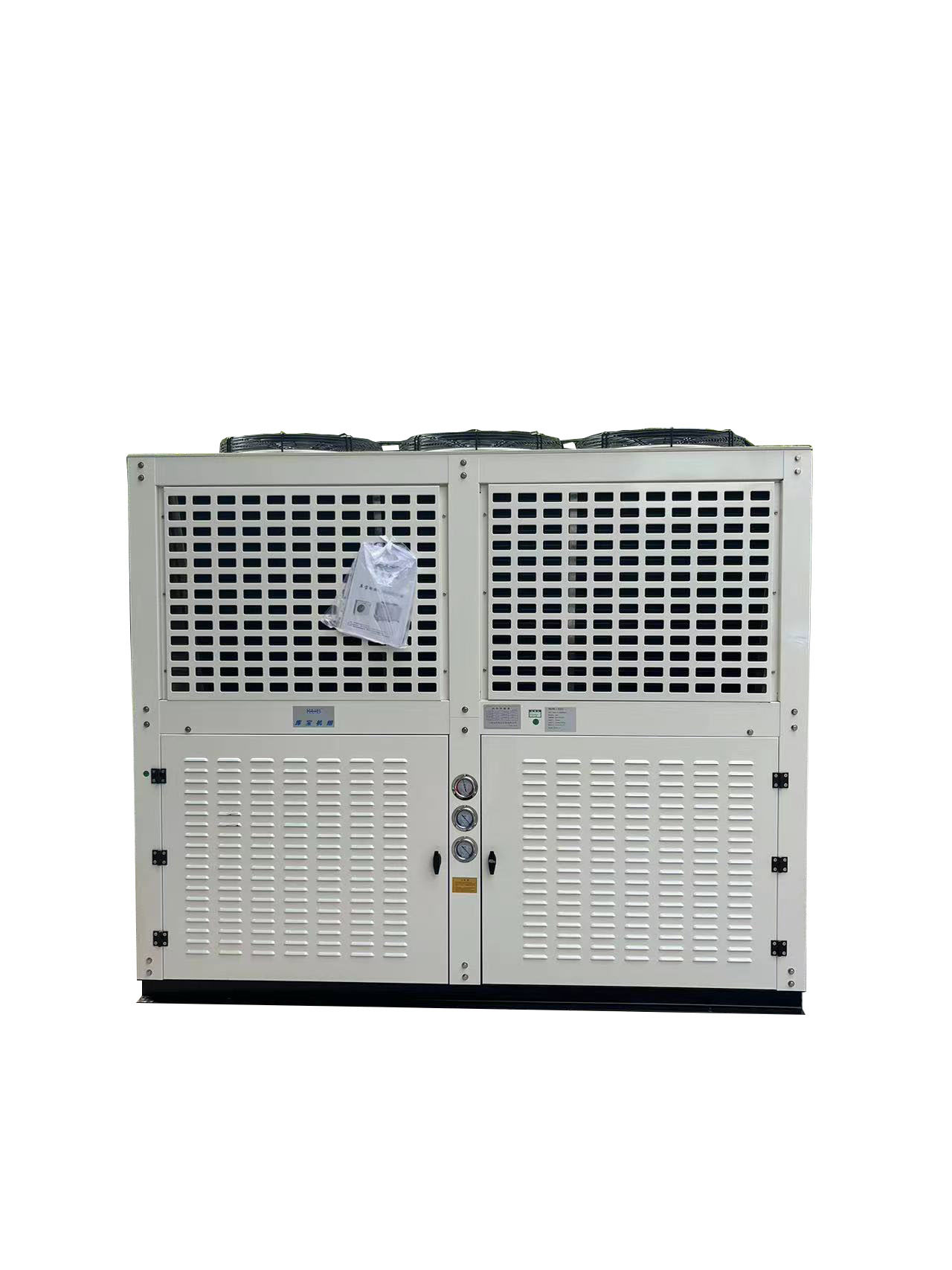

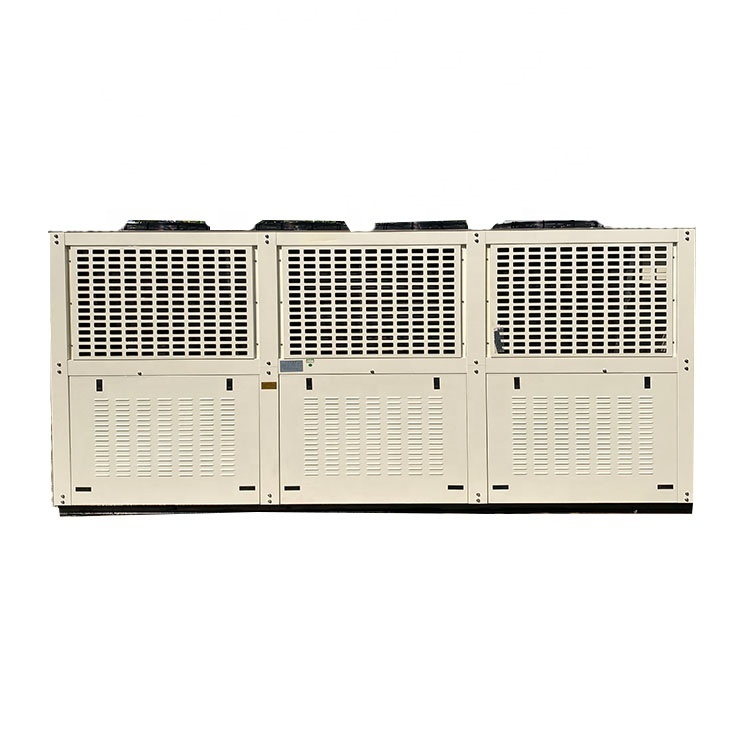

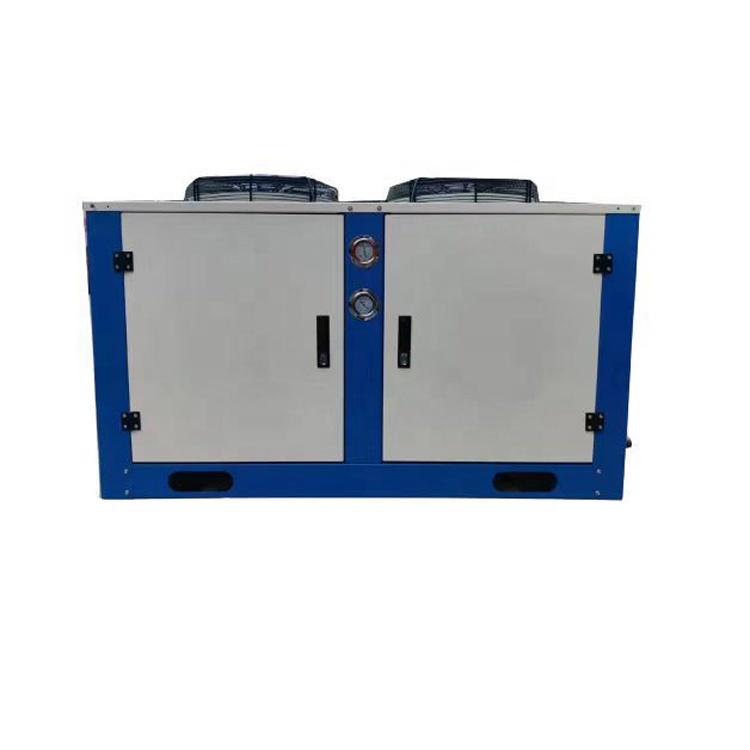

Product Images
Applications
This air cooled refrigeration condensing unit is ideal for:
- Cold storage rooms
- Freezer rooms
- Commercial refrigeration systems
- Industrial cooling applications
Frequently Asked Questions
Q1: Are you a manufacturer or trading company?
A1: We are agents for the compressor but manufacture condensing units, chillers, and evaporators.
Q2: What about the shipping methods?
A2: Available shipping methods include express, air, and sea freight.
Q3: What about the payment methods & payment terms?
A3: We accept T/T, PayPal, Western Union, and cash. Standard terms are 30% deposit with 70% balance before shipment.
Q4: What's your delivery time? Where is the loading port?
A4: Typically 35-60 days after payment. Loading port is usually Shanghai, but other Chinese ports are available upon request.
Q5: Can I have a sample first?
A5: Samples are available at cost.
Q6: How do you ship the goods and how long does it take to arrive?
A6: We ship via LCL or FCL by sea, air, or express. Transit times are approximately 30 days by sea, 5-7 days by air or express.
Packaging & Warranty
All units are securely packed in wooden cases for safe transportation.
Warranty: KUB provides a 1-year warranty period. Any product quality issues will be addressed promptly with return processing and full responsibility.
Customization Services
We offer customized solutions for:
- Refrigeration industry applications
- Cold storage engineering projects
- Agriculture, food service, restaurant, and chemical industry needs
