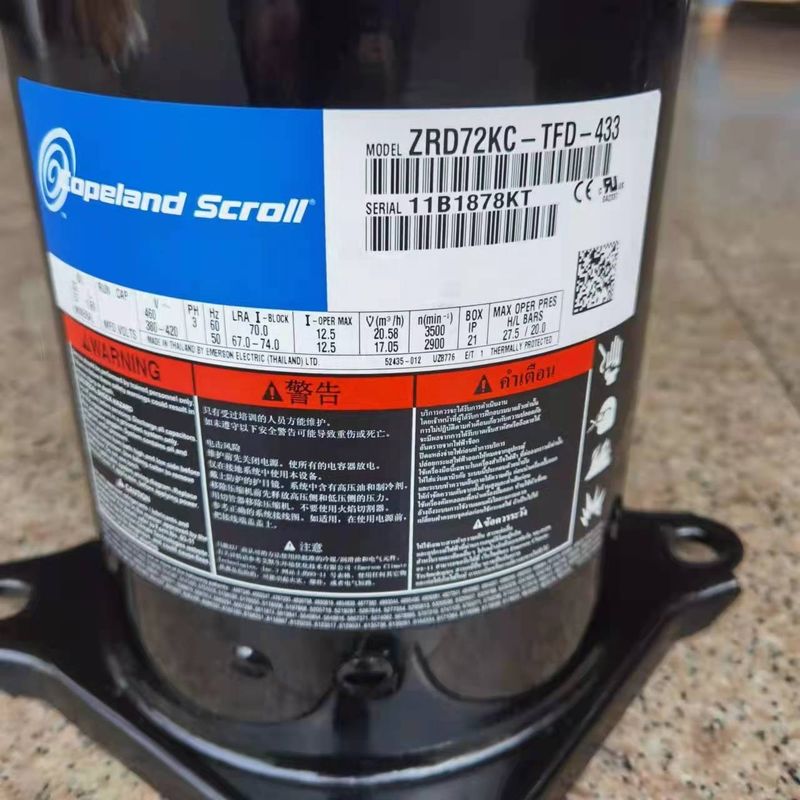

ZRD72KC ZRD72KC-TFD-433 6HP compressor Copeland digital compressor
Με ελάτε σε επαφή με δωρεάν δείγματα και δελτία.
whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.
xΠαροχή ηλεκτρικού ρεύματος | 380-420v 3ph 50hz | Τύπος συμπιεστών | Ερμητικός συμπιεστής |
---|---|---|---|
Τύπος δομών | Οριζόντιος | Ψυκτική ουσία | R22 |
Ικανότητα ψύξης | 17600 | Δύναμη | 5330 |
Όροι δοκιμής | Α |
ZRD72KC ZRD72KC-TFD-433 6HP compressor Copeland digital compressor
Model | Horsepower | Cooling capacity | Input power | Current | COP | EER | |
W | Btu/h | W | A | W/W | (Btu/Wh) | ||
ZRD72KC TFD | 6 | 17600 | 60200 | 5330 | 9.6 | 3.31 | 11.3 |
Model | Refrigerant | Displacement | Filling oil | N.W | Stall current | Noise | Voltage |
(cc/Rev) | L | kg | A | dBA | |||
ZRD72KC TFD | R22 | 98.1 | 1.89 | 39.9 | 74 | 71 | 380-420v 3ph 50hz |

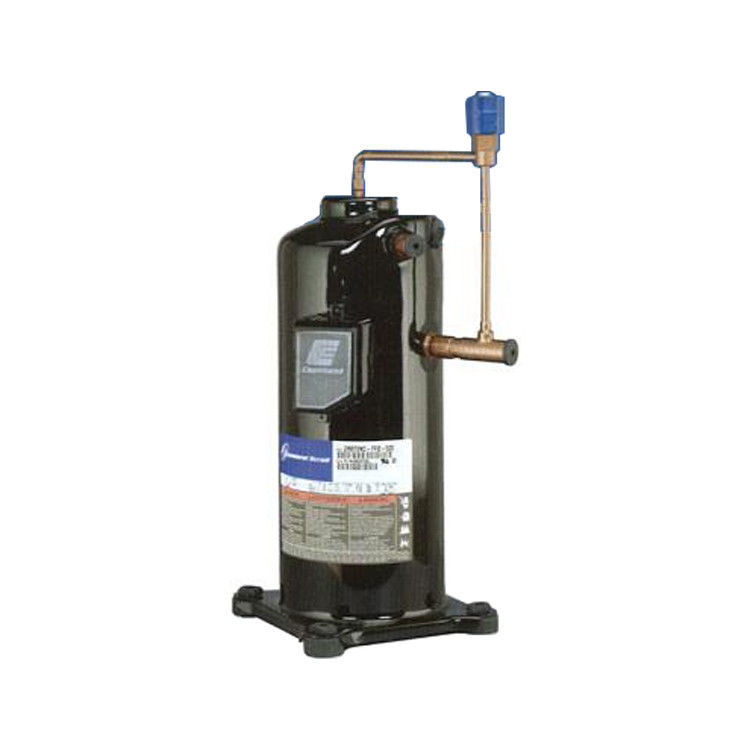

Copeland scroll compressors are perfect for split, rooftop, unit and chiller systems.
Copeland digital scroll compressors provide infinite capacity adjustment for air conditioning applications and are suitable for R22, R407C and R410A refrigerants.
In many refrigeration and heating system applications, the load and operating conditions of the system vary over a wide range, and at this time, adjustable capacity output is necessary. Copeland Digital Scroll is a simple and reliable compressor solution with energy output adjustable down to 10% of nominal cooling capacity, meeting multiple requirements for precise temperature and humidity control, comfort and energy savings.
Copeland digital scroll compressors are perfect for VRF multi-line, rooftop, chiller and process cooling.
